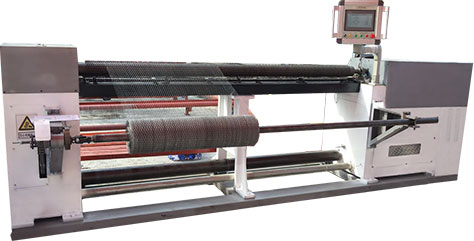

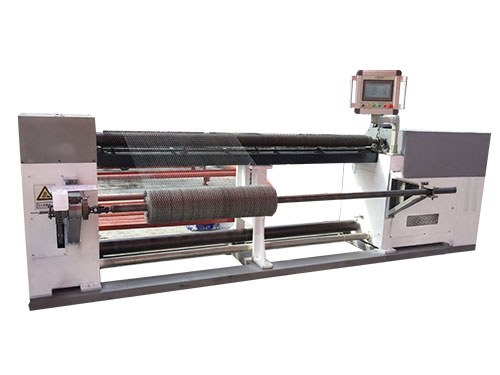

GNT Hexagonal Wire Mesh Machine
Specification

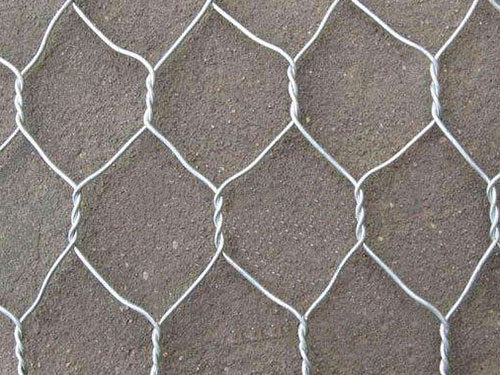

Light hexagonal net twisting machine is the sophisticated production, which is the company manufacture for many years. It includes 1 / 2', 5 / 8', 3 / 4 ', 1 ', 1 / 1 / 4', 1 / 1 / 2', 2 ' and other specifications, and it can twist hexagonal net with different apertures. The biggest weaving wire diameter is 1.2mm.
Specification
| Mesh Width （mm） | Mesh Size （mm） | Wire Diam （mm） | Number Of Twists | Weight （t） | Power （KW） |
| 2000-3000 | 20-22 | 0.52-0.70 | 6 | 3.5-4.5 | 2.2 |
| 25-27 | 0.50-1.00 | ||||
| 30-32 | 0.50-1.20 | ||||
| 40-45 | 0.60-1.40 | ||||
| 50-55 | 0.60-1.50 | ||||
| 75-80 | 1.00-1.50 |
Light hexagonal net twisting machine is the sophisticated production, which is the company manufacture for many years. It includes 1 / 2', 5 / 8', 3 / 4 ', 1 ', 1 / 1 / 4', 1 / 1 / 2', 2 ' and other specifications, and it can twist hexagonal net with different apertures. The biggest weaving wire diameter is 1.2mm. The product has two types, single width and double width. The maximum twisting wire diameter of single width is 1.2mm, the maximum twisting wire diameter of double width is 2.2mm. After the middle isolation, two nets of one-meter width can be twisted at the same time. 1 / 2 ' and 3 / 4' models after the necessary mechanical modification, can twisting ladder type network, which can be widely used for asbestos for rib.
