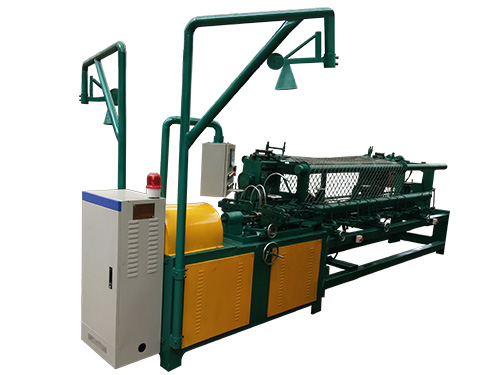

GNT Automatic Chain Link Fence Machine (Double wire)
Specification:
Productivity: 80-100 ( m² /h)
Wire Diam: φ2.0 -φ4.0 ( mm )
Spinning Number: double
Wire Standard: GB3081-82；YB544-65
Steel Mesh Size: 40 x 40 -150x 150 ( mm )
Mesh Width: 2-6 ( m )
Mesh Length: Optional
Power: 5.5KWx1（set）；1.5KWx4（set）
Overall Size（2m）: 4500 x 2000 x 1600 ( mm )
Weight: 3.0t
This machine adopts the principle of imported double wire net machine. It not only has high production efficiency, but the low price of only 1/20 of the imported machine. The structure of this machine is reasonable. It uses micro control technology, controlled by computer to achieve mechatronic. The process of spinning, cutting, transmission wire mesh, overlocking can be made automatically.
