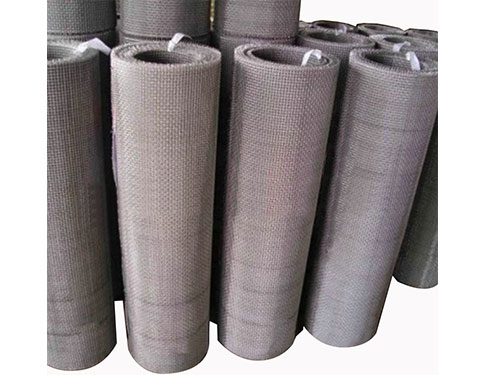

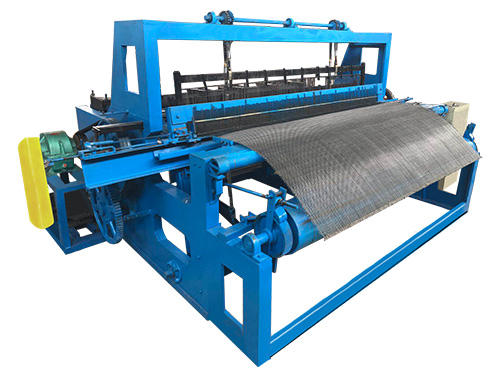

This machine was designed to meet the market demand. This machine has absorbed the advantages the of domestic and foreign similar netting machine. It uses the non-shuttle shaftment to lead the tram, and then crimps the warp and tram. It is full-automatic and warp and weft embossing, weaving can be made in one time. The whole machine has the characteristics of simple, stable and high production efficiency. Suitable for weaving medium, small wire, and processing the special-shaped net. Products are widely used in coal, petroleum, chemical and other fields for screening and filtration.
Specifications:
Wire Diameter（mm） | Aperture Size （mesh / inch） | Mesh Width（m） | Overall size（m） | Power（kw） | Weight（t） |
φ 0.4 - 1 .6 | 2 - 20 | 1.0 | 2.5x2.0x1.5 | 0.75 | 1.1 |
| 1.2 | 2.8x2.0x1.5 | 1.1 | 1.5 | ||
| 1.3 | 3.2x2.0x1.7 | 1.1 | 1.5 | ||
| 1.5 | 3.5x2.5x1.7 | 1.5 | 2.2 | ||
| 1.8 | 4.0x2.5x1.7 | 2.2 | 3.0 | ||
| 2.0 | 4.2x3.0x1.8 | 3.0 | 3.0 | ||
| 2.3 | 4.2x3.0x1.8 | 3.0 | 3.0 |
